Extended review
The full write-up on this product

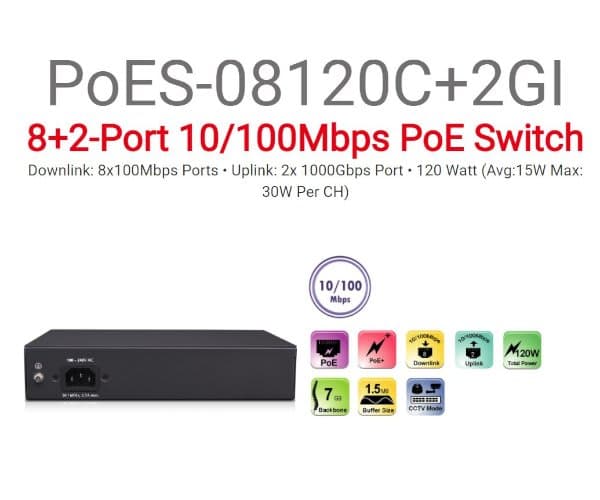

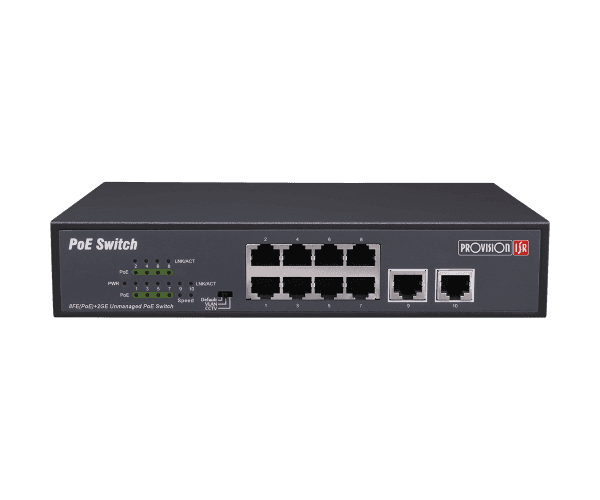

Provision PoES-08120C+2GI is a PoE switch for IP cameras: eight 10/100 ports delivering power and data over a single cable, and two Gigabit Uplink ports for network connection. It features a dedicated CCTV mode.
Uplink2 × Gigabit
PoE budget120W
Standard802.3af/at
How much power is available
The PoE budget is 120W for all ports combined. The average output per port is 15W with a maximum of 30W. Eight ports at maximum would require 240W, so not all can operate at full power simultaneously.
| PoE ports | 8 × RJ45 at 10/100Mbps (Fast Ethernet) standard |
|---|
| Uplink ports | 2 × RJ45 at 10/100/1000Mbps standard. No SFP. Do not provide PoE |
|---|
| PoE budget | 120W total. Average 15W per port, maximum 30W per port |
|---|
| PoE standard | IEEE 802.3af/at, automatic detection of compatible devices |
|---|
| Switch performance | 7Gbps backbone, 4K MAC address table, 1.5Mb buffer |
|---|
| Dimensions | 219.6 × 105 × 27.6 mm, fanless |
|---|

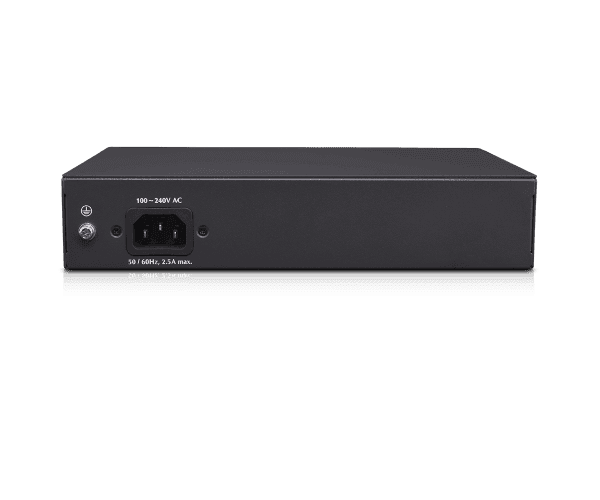

| Power | 100–240V AC input |
|---|
| Installation | Desktop or wall (optional wall mount). No rack mount. K-Slot security lock and built-in surge protection |
|---|
| Monitoring | No LCD screen and no PoE monitoring |
|---|
⚡PoE 802.3af/atUp to 30W per port. The switch detects compatible devices and supplies them with power
🔗Gigabit UplinkTwo 10/100/1000 ports for network connection. They do not provide PoE
🛡️Surge protectionBuilt-in surge protection and K-Slot security lock
Please note- The PoE ports are 10/100 and not Gigabit
- The 120W budget is shared — not all ports will operate at maximum simultaneously
- No rack mount and no screen or PoE monitoring
